MS-D247
MASUNG

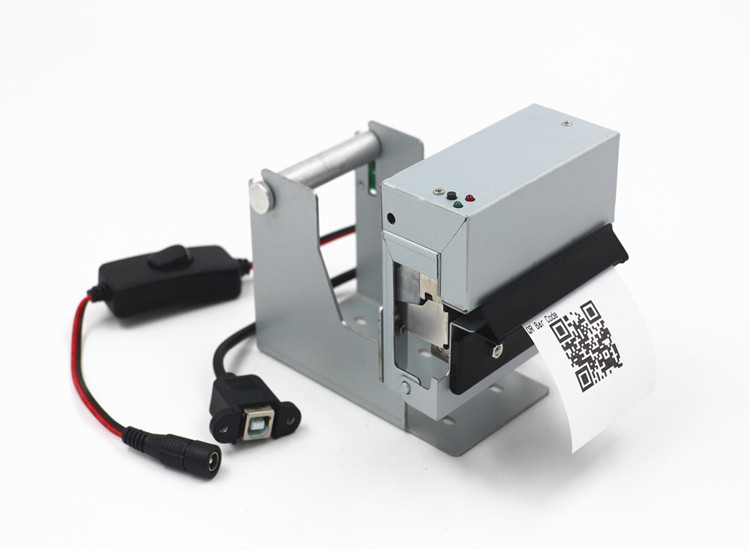

MASUNG independently developed embedded thermal printing module MS-D247
1. Automatic paper feeding, automatic paper cutting, black mark detection, paper near end, paper output detection and other functions
2. Support the printing of one-dimensional barcode and two-dimensional code
3. Stainless steel body, small size, easy to install
4.58mm thermal printer, with stainless iron metal shell, corrosion-resistant and not easy to rust
5. Low cost of printing paper thermal paper consumables
6. Application areas: bank wall-mounted self-service equipment terminal printers, self-service fuel dispensers, self-service telephone machines, recharge machines, payment machines, self-service parking factory card issuing machines, coupon printers, queuing machine printers, visitor machines, self-service printing all-in-one machines, self-service terminals Printers, locker printers, locker printers, storage cabinet printers, etc.
mechanism: | CAPD245 | ||
Printing method | Thermal dot line printing | ||
Dots/line | 384 dots/line | ||
Dot pitch | 8 dot/mm | ||
Paper width | 58 mm | ||
Printing width | 48 mm | ||
Paper thickness | 54~91 um | ||
Printing speed | 150 mm/s | ||
Paper loading | Paper auto loading | ||
Sensors | Head temperature | Thermistor | |
Paper press shaft | Mechanical switch | ||
Paper end | Photo interrupter | ||
Font size | ASCII:9*17;12*24; Chinese: 24*24 | ||
Power supply | Logic circuit | 2.6~3.6 V | |
Motor | 4.75 ~9.5 V | ||
Reliability | Circuit: over 1,000,000,000 pulses Cutter: over 7,000,000 cuts Thermal head: over 100 km MCBF: 37,000,000 lines | ||
Ambient environment | Work temperature | -10 ℃~50℃ | |
Work humidity | 20~85% RH | ||
Storage temperature | -25℃~70℃ | ||
Storage temperature | 10~90% RH | ||
Dimension (L*W*H) | 127*89*93 mm | ||
Weight | Approx 0.45 kg | ||
Interface | RS-232 /USB | ||
power supply | DC 9~24V/2.5A | ||
Command set | ESC/POS | ||
Barcode | supported | ||
Firmware location | 2 M NV Flash memory | ||
Buffer | 4 KB | ||
SRAM | 20 KB | ||
Driver | USB driver | ||
System | Windows/Linux/Android OS | ||
Accessories: | paper near end sensor; | ||
Paper roll holder | |||
Paper bezel (paper guide mouth) | |||
Interface connector | |||
Power supply unit | |||
Cable |
MASUNG independently developed embedded thermal printing module MS-D247
1. Automatic paper feeding, automatic paper cutting, black mark detection, paper near end, paper output detection and other functions
2. Support the printing of one-dimensional barcode and two-dimensional code
3. Stainless steel body, small size, easy to install
4.58mm thermal printer, with stainless iron metal shell, corrosion-resistant and not easy to rust
5. Low cost of printing paper thermal paper consumables
6. Application areas: bank wall-mounted self-service equipment terminal printers, self-service fuel dispensers, self-service telephone machines, recharge machines, payment machines, self-service parking factory card issuing machines, coupon printers, queuing machine printers, visitor machines, self-service printing all-in-one machines, self-service terminals Printers, locker printers, locker printers, storage cabinet printers, etc.
mechanism: | CAPD245 | ||
Printing method | Thermal dot line printing | ||
Dots/line | 384 dots/line | ||
Dot pitch | 8 dot/mm | ||
Paper width | 58 mm | ||
Printing width | 48 mm | ||
Paper thickness | 54~91 um | ||
Printing speed | 150 mm/s | ||
Paper loading | Paper auto loading | ||
Sensors | Head temperature | Thermistor | |
Paper press shaft | Mechanical switch | ||
Paper end | Photo interrupter | ||
Font size | ASCII:9*17;12*24; Chinese: 24*24 | ||
Power supply | Logic circuit | 2.6~3.6 V | |
Motor | 4.75 ~9.5 V | ||
Reliability | Circuit: over 1,000,000,000 pulses Cutter: over 7,000,000 cuts Thermal head: over 100 km MCBF: 37,000,000 lines | ||
Ambient environment | Work temperature | -10 ℃~50℃ | |
Work humidity | 20~85% RH | ||
Storage temperature | -25℃~70℃ | ||
Storage temperature | 10~90% RH | ||
Dimension (L*W*H) | 127*89*93 mm | ||
Weight | Approx 0.45 kg | ||
Interface | RS-232 /USB | ||
power supply | DC 9~24V/2.5A | ||
Command set | ESC/POS | ||
Barcode | supported | ||
Firmware location | 2 M NV Flash memory | ||
Buffer | 4 KB | ||
SRAM | 20 KB | ||
Driver | USB driver | ||
System | Windows/Linux/Android OS | ||
Accessories: | paper near end sensor; | ||
Paper roll holder | |||
Paper bezel (paper guide mouth) | |||
Interface connector | |||
Power supply unit | |||
Cable |
