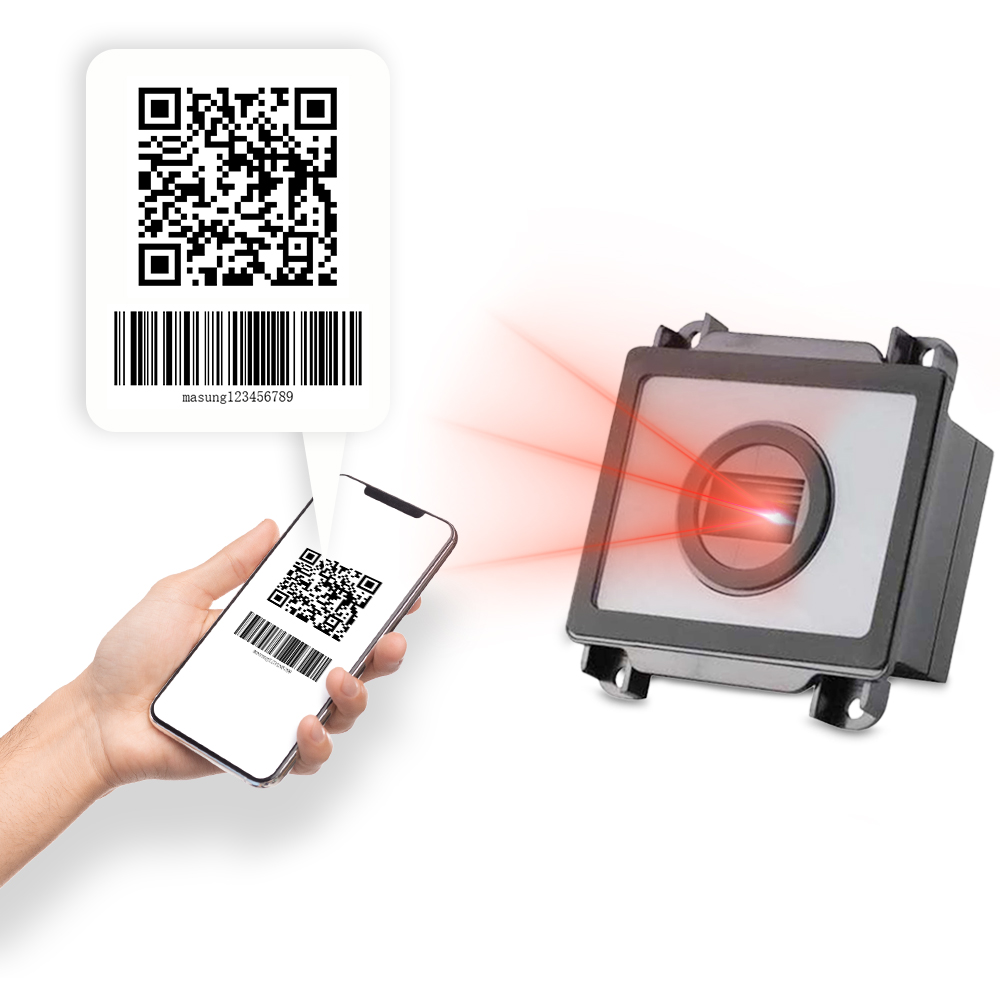

MS-28
MASUNG
Features:
*Collection speed is 1/72 second
*Scan code distance with WeChat, alipay payment barcode 10-110cm
*360° reading;80cm distance width 50cm (measured) *Full interface mode: support RS485, RS232,
USB, TTL level
*Wide temperature measured -30~70ºC, more suitable for outdoor use
*Normal code reading under sunlight
Application :
Highway, parking lot, scanning payment code more than 80cm ,code can be read normally under sunlight
2024 New 2D QR Code Barcode Scanner Desktop Handsfree Table top code reader with ultra high performance
OEM Mini Size USB TTL Scanner Module Reader 2D Barcode Scan Engine with SDK
Dimensions: | 65mmL×61mmW×28mmH |
Weight | <30g |
Speed | 1/72 s |
Field of View | Diagonal 56°, horizontal 50°, vertical 30° |
Scanning mode | Command mode/sense mode/trigger mode |
LED lights hint | Blue: standby state;Red: waiting for code reading status;Green: read code success status |
Data line (optional) | USB 2-meter straight line, RS232 2-meter straight line |
Socket interface | 12PIN cable socket, 1.25mm Pitch12PIN 0.5mm Pitch FPC socket, upper and lower compatible .The power supply is 3-3.6v or 3.6-16vUSB/RS232/3 v TTL / 5 v TTL/RS485 |
Fixed hole | Four direct 3.3mm fixed holes |
Screw holes | Two M3*5mm copper nuts |
Features:
*Collection speed is 1/72 second
*Scan code distance with WeChat, alipay payment barcode 10-110cm
*360° reading;80cm distance width 50cm (measured) *Full interface mode: support RS485, RS232,
USB, TTL level
*Wide temperature measured -30~70ºC, more suitable for outdoor use
*Normal code reading under sunlight
Application :
Highway, parking lot, scanning payment code more than 80cm ,code can be read normally under sunlight
2024 New 2D QR Code Barcode Scanner Desktop Handsfree Table top code reader with ultra high performance
OEM Mini Size USB TTL Scanner Module Reader 2D Barcode Scan Engine with SDK
Dimensions: | 65mmL×61mmW×28mmH |
Weight | <30g |
Speed | 1/72 s |
Field of View | Diagonal 56°, horizontal 50°, vertical 30° |
Scanning mode | Command mode/sense mode/trigger mode |
LED lights hint | Blue: standby state;Red: waiting for code reading status;Green: read code success status |
Data line (optional) | USB 2-meter straight line, RS232 2-meter straight line |
Socket interface | 12PIN cable socket, 1.25mm Pitch12PIN 0.5mm Pitch FPC socket, upper and lower compatible .The power supply is 3-3.6v or 3.6-16vUSB/RS232/3 v TTL / 5 v TTL/RS485 |
Fixed hole | Four direct 3.3mm fixed holes |
Screw holes | Two M3*5mm copper nuts |
