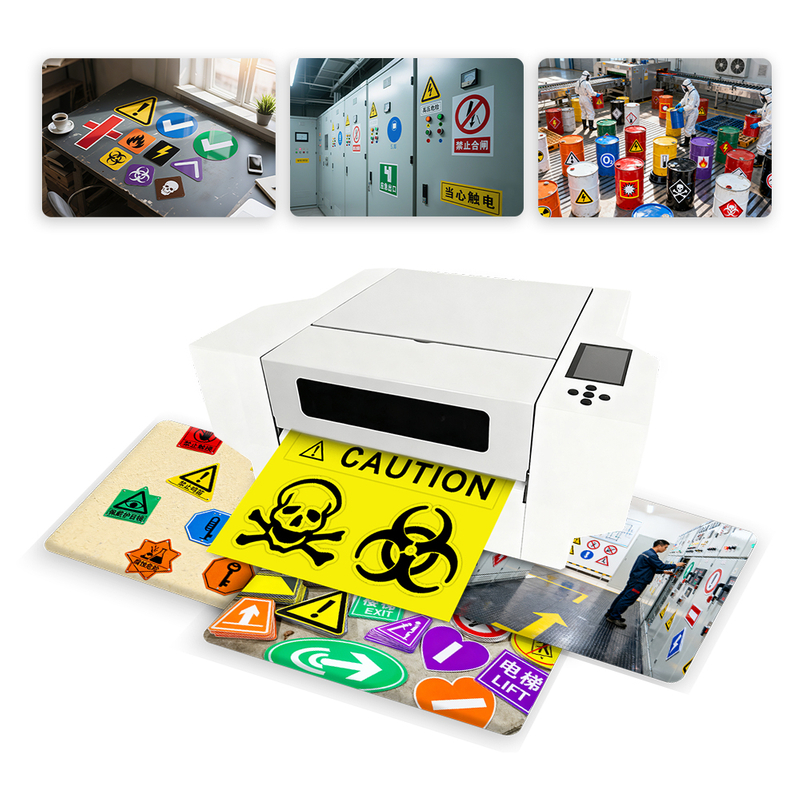

MASUNG MS-TTR370 Diy A3 Auto Feeding Sheet Laminate Sheets Sticker Transfer Plastic Pvc Label Cutter Paper Die-cutting Machine
MS-TTR370_Thermal transfer engraving logo printer
1. Printing method: thermal transfer, resin ribbon thermal transfer
2. Effective print head width: 219mm (8-inch print head)
3. Resolution: 300DPI
4. Cutting accuracy: plus or minus 0.3mm
5. Feed width: 220mm-260mm (adjustable)
6. Printing speed: 2 inches (not less than 50mm/second)
7. Cutting method: automatic cutting function for label tape below 0.35mm (cutting text, outer frame, outer edge)
8. The print head has a manual overall flip function to facilitate the installation of the ribbon box
9. Display screen: Use a large screen plus touch button display screen as the menu display (Note: the display screen does not need to run the system).
10. Printing media (roll): PVC, PET label self-adhesive tape
2. Effective print head width: 219mm (8-inch print head)
3. Resolution: 300DPI
4. Cutting accuracy: plus or minus 0.3mm
5. Feed width: 220mm-260mm (adjustable)
6. Printing speed: 2 inches (not less than 50mm/second)
7. Cutting method: automatic cutting function for label tape below 0.35mm (cutting text, outer frame, outer edge)
8. The print head has a manual overall flip function to facilitate the installation of the ribbon box
9. Display screen: Use a large screen plus touch button display screen as the menu display (Note: the display screen does not need to run the system).
10. Printing media (roll): PVC, PET label self-adhesive tape
| Quantity: | |
|---|---|
-
MS-TTR370
-
MASUNG

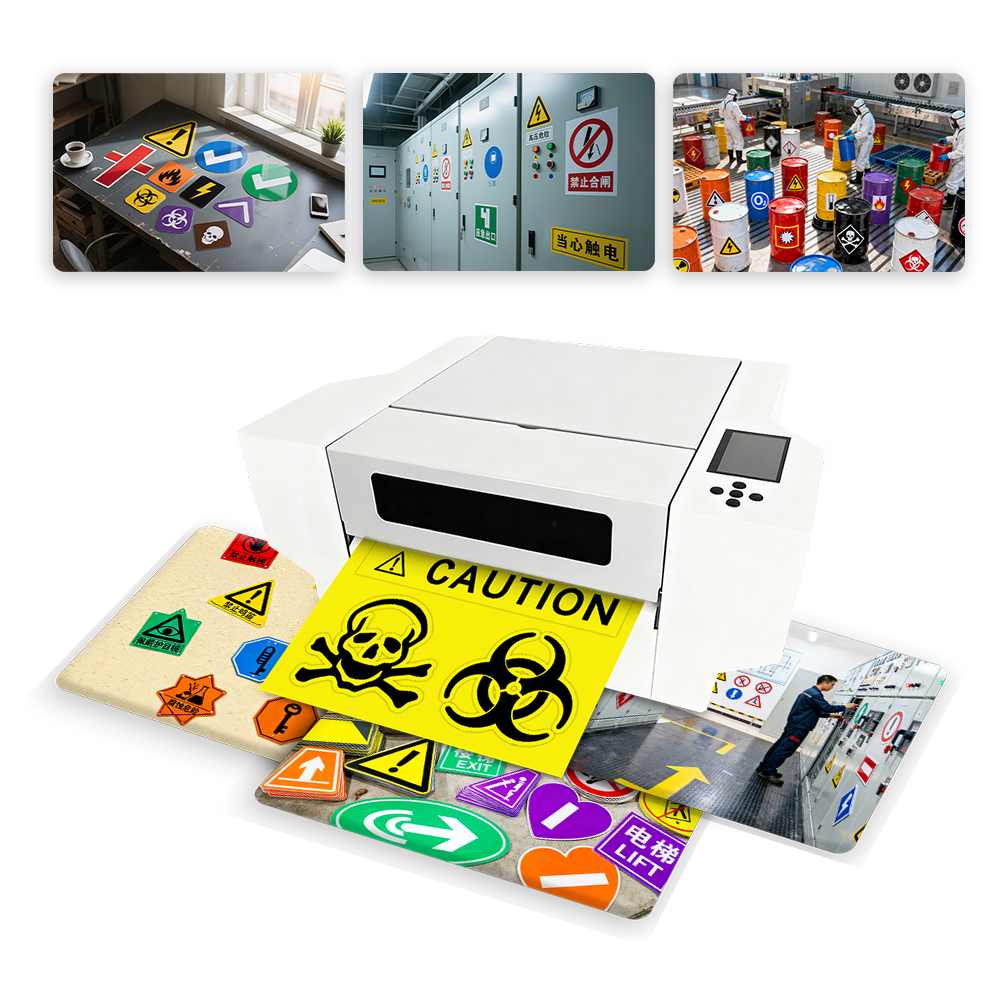

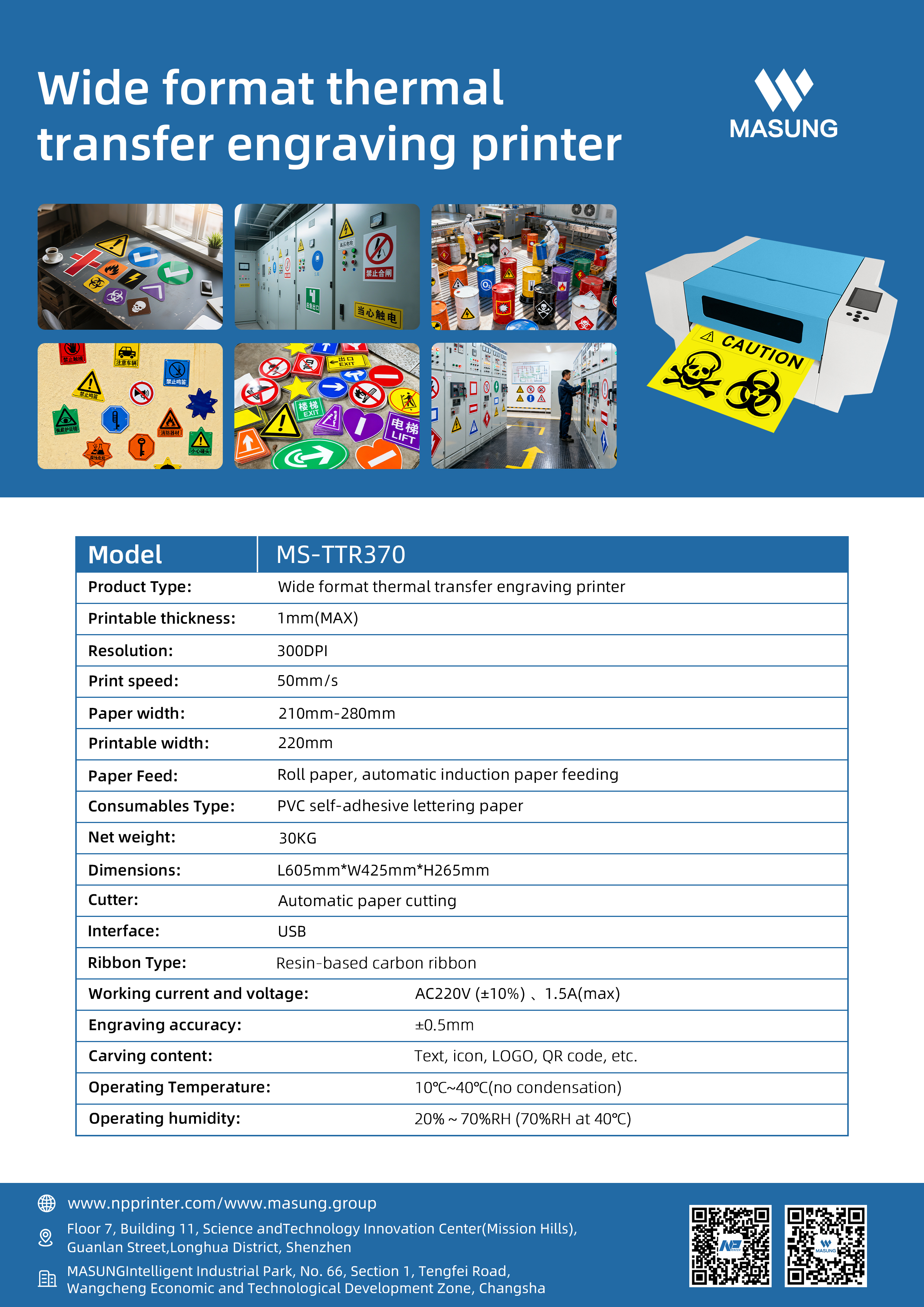

MS-TTR370 is a thermal transfer signage printer independently developed and produced by MASUNG
MASUNG MS-TTR370 thermal transfer color engraving logo printer features are as follows：
1. Printing method: thermal transfer, resin ribbon thermal transfer
2. Effective print head width: 219mm (8-inch print head)
3. Resolution: 300DPI
4. Cutting accuracy: plus or minus 0.3mm
5. Feed width: 220mm-260mm (adjustable)
6. Printing speed: 2 inches (not less than 50mm/second)
7. Cutting method: automatic cutting function for identification tape below 0.35mm (cutting text, outer frame, outer edge)
8. The print head has a manual overall flip function to facilitate the installation of the ribbon box
9. Display screen: Use a large screen plus touch button display screen as the menu display (Note: the display screen does not need to run the system).
10. Printing media (roll): PVC, PET label self-adhesive tape
11. Consumables: carbon ribbon, printing media needs to add RFID identification function (consumables anti-counterfeiting, password can be set independently, anti-decryption)
12. Carbon ribbon: resin carbon ribbon is 220mm*100m, the axis uses 260mm long, and the 1-inch tube core is 25.4mm
13. Printing media (roll tape) 3-inch tube core is 76mm, 25 meters long
14. Add Bluetooth WIFI function (pay attention to the printing speed)
15. Interface: USB2.0 Bluetooth
16. Power supply: input voltage 110V-220V, 50HZ/60HZ
17. Windows10, Windows8, support 32-bit and 64-bit
18. Working temperature: 5-35C, 20%-85%RH (no condensation)
19. Sensor: print positioning sensor, cover opening sensor, automatic locking print head function
| Model： | MS-TTR370 |
| Product Name： | Thermal transfer engraving logo printer |
| Resolution： | 300dpi |
| Communication interface： | USB2.0Bluetooth |
| Effective print head width： | 219mm（8 inch print head） |
| Print speed： | 2 inch/S |
| Cutting accuracy： | Plus or minus 0.3mm |
| Feed width： | 220mm-260mm |
| Display： | Large screen plus touch button display as menu display |
| Cutting method： | Automatic cutting function for label tapes with a thickness below 0.35 mm (cutting text, frame, outer edge) |
| Printing method： | Thermal transfer, resin ribbon thermal transfer |
| Printing media (roll material)： | PVC, PET logo label adhesive tape |
| Printing media (tape): | 3-inch tube core is 76mm, 25 meters long |
| Carbon ribbon： | The resin ribbon is 220mm*100m, the axis is 260mm long, and the 1-inch tube core is 25.4mm |
| Dimensions： | About 934mm *542mm *443mm (length*depth*height) |
| power supply： | Input voltage 110V-220V, 50HZ/60HZ |
| Operating temperature: | 5-35C, 20%-85%RH (no condensation) |
| Sensor： | Printing positioning sensor, cover opening sensor, automatic locking of print head function |
MS-TTR370 is a thermal transfer signage printer independently developed and produced by MASUNG
MASUNG MS-TTR370 thermal transfer color engraving logo printer features are as follows：
1. Printing method: thermal transfer, resin ribbon thermal transfer
2. Effective print head width: 219mm (8-inch print head)
3. Resolution: 300DPI
4. Cutting accuracy: plus or minus 0.3mm
5. Feed width: 220mm-260mm (adjustable)
6. Printing speed: 2 inches (not less than 50mm/second)
7. Cutting method: automatic cutting function for identification tape below 0.35mm (cutting text, outer frame, outer edge)
8. The print head has a manual overall flip function to facilitate the installation of the ribbon box
9. Display screen: Use a large screen plus touch button display screen as the menu display (Note: the display screen does not need to run the system).
10. Printing media (roll): PVC, PET label self-adhesive tape
11. Consumables: carbon ribbon, printing media needs to add RFID identification function (consumables anti-counterfeiting, password can be set independently, anti-decryption)
12. Carbon ribbon: resin carbon ribbon is 220mm*100m, the axis uses 260mm long, and the 1-inch tube core is 25.4mm
13. Printing media (roll tape) 3-inch tube core is 76mm, 25 meters long
14. Add Bluetooth WIFI function (pay attention to the printing speed)
15. Interface: USB2.0 Bluetooth
16. Power supply: input voltage 110V-220V, 50HZ/60HZ
17. Windows10, Windows8, support 32-bit and 64-bit
18. Working temperature: 5-35C, 20%-85%RH (no condensation)
19. Sensor: print positioning sensor, cover opening sensor, automatic locking print head function
| Model： | MS-TTR370 |
| Product Name： | Thermal transfer engraving logo printer |
| Resolution： | 300dpi |
| Communication interface： | USB2.0Bluetooth |
| Effective print head width： | 219mm（8 inch print head） |
| Print speed： | 2 inch/S |
| Cutting accuracy： | Plus or minus 0.3mm |
| Feed width： | 220mm-260mm |
| Display： | Large screen plus touch button display as menu display |
| Cutting method： | Automatic cutting function for label tapes with a thickness below 0.35 mm (cutting text, frame, outer edge) |
| Printing method： | Thermal transfer, resin ribbon thermal transfer |
| Printing media (roll material)： | PVC, PET logo label adhesive tape |
| Printing media (tape): | 3-inch tube core is 76mm, 25 meters long |
| Carbon ribbon： | The resin ribbon is 220mm*100m, the axis is 260mm long, and the 1-inch tube core is 25.4mm |
| Dimensions： | About 934mm *542mm *443mm (length*depth*height) |
| power supply： | Input voltage 110V-220V, 50HZ/60HZ |
| Operating temperature: | 5-35C, 20%-85%RH (no condensation) |
| Sensor： | Printing positioning sensor, cover opening sensor, automatic locking of print head function |
