High-Speed QR Code Scanner Kiosk for Event Check-ins
Qr Code Scanner USB Ttl Embedded Barcode Scanner Module
| Quantity: | |
|---|---|
-
MS-7710
-
MASUNG
Features:
Leading Decoding Technology
Using self-developed core technology, high speed response, Support for rapid development and customization requirements;
Compatible with screen and paper bar code
Support reading screen and paper bar code, one set
supports for multiple needs;
Ultra-thin design
Thickness only 21mm, make integration more convenient;
Wide Voltage Design
Supply voltage V 3.3 or 3.6-6
Full code system
Support for mainstream one, two-dimensional codes on the market and support for customizing special decoding requirements.
Multiple interface
Multiple interface protocols: USB, USB COM, TTL 232, RS232, TTL3.3V,TTL5V and other interfaces; physical interface forms have 12 PIN 0.5mm FPC and 6 PIN MX1.25 spacing terminal seat
High Integration
Integrated buzzer, lamp, terminal in a core board, more stable

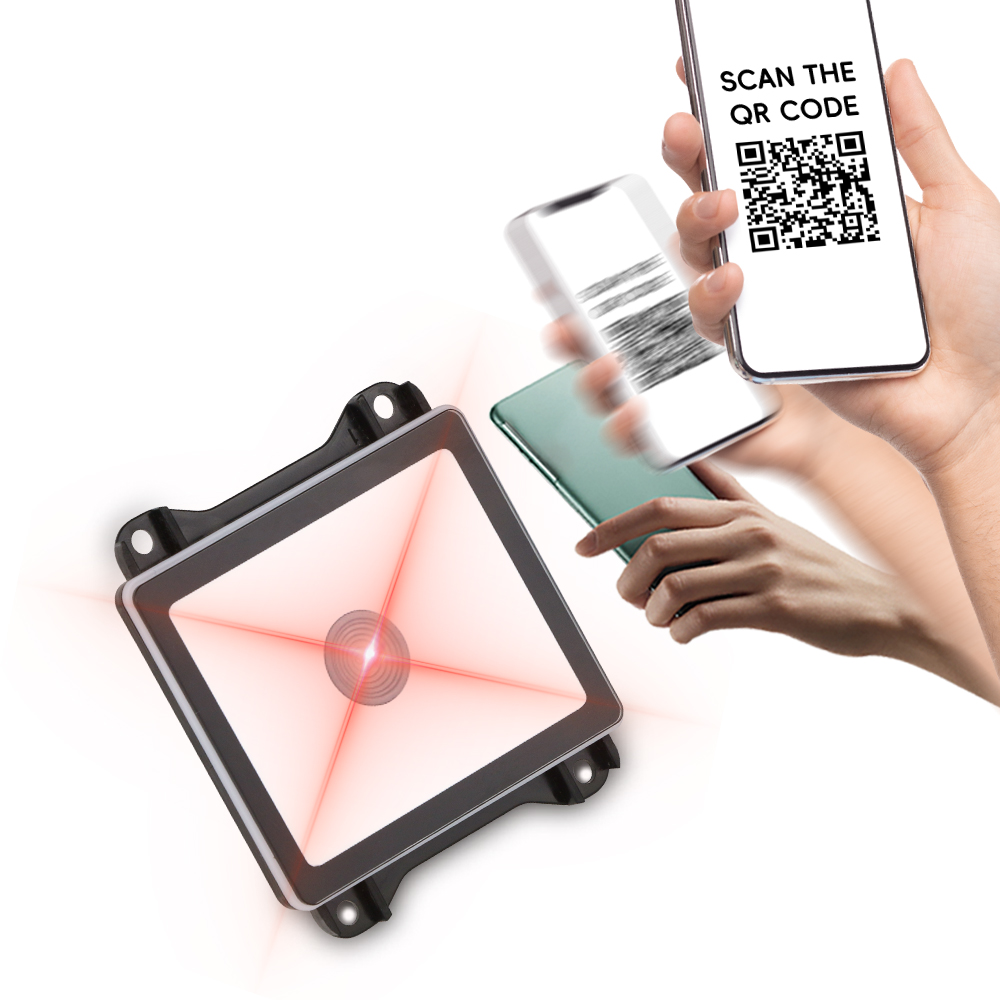

MS-7710 series (Barcode Scanning Engine)
| Model | 7710 |
| 2D | PDF417, Micro PDF417, Data Matrix, QRCode , Micro QRCode , Maxi Code, Aztec Code, Han XIN CODE etc |
| 1D | Interleaved 2of 5, ISBN, Code 93, Code 11, UCC/EAN-128 GS1Databar, Matrix 2of 5, Industrial 2of 5, Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Standard 2of 5, MSI-Plessey, GS1composite code, etc |
| Communication interface | TTL /RS -232,USB ,USB COM ,TTL3.3V ,TTL5V |
| Dimension (mm) | 64.8(W)×60.5(D)×21.2(H)mm |
| Weight | 30 g |
| Working voltage | 3.3-6 V |
| Times of cycles | 30 minutes high temperature; 30 minutes low temperature |
| Period | 24 |
| Drop Resistan | Can withstand 1.2 m drop to cement ground |
