Advanced 80mm Thermal Printer for Retail and More

Name: Advanced 80mm Thermal Printer for Retail and More
Brand: MASUNG
Rating: 5.0 (11 reviews)

MS-MA90_80mm thermal receipt printer

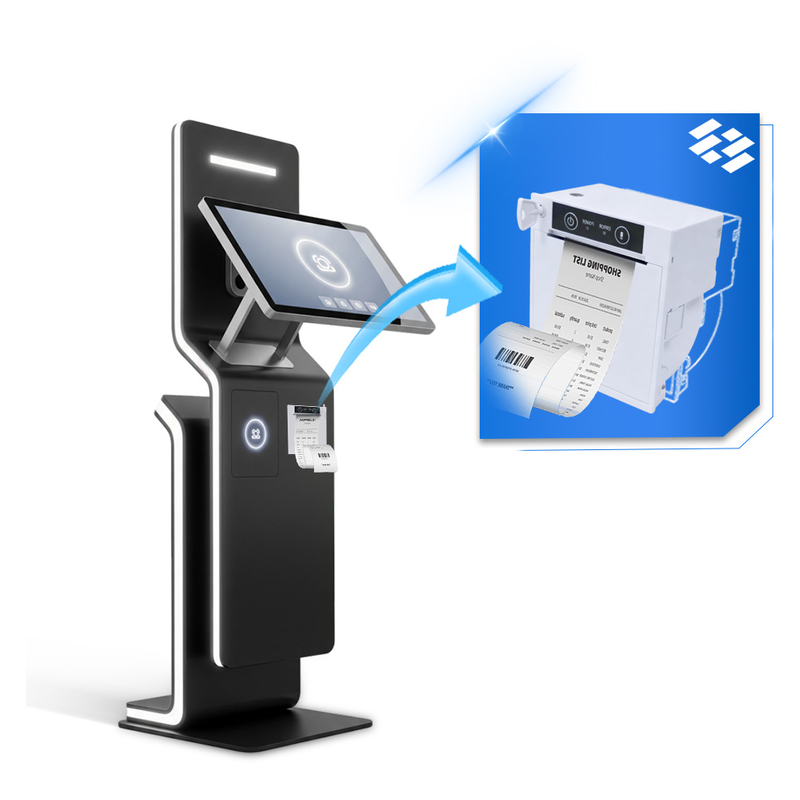

1. Easy to embed into any type of self-service machine, instrumentation
2. Opening method: with lock or push button
3. Paper pickup reminder function: Paper pickup detection + flashing light
4. Paper-end reminder function: Paper-end detection
5. Automatically remove jammed knife function: automatically retract the knife after powering on after shutdown

Availability:

Quantity:



Inquire Add to Basket

Model:
MS-MA90
Brand:
MASUNG

Product Description

80mm Panel Recept Printer

MS-MA90

80mm USB RS232 Autocutting Thermal Receipt Panel Printer with 3 Uncover Methods for Vending Machine

Feature:

* 80mm thermal panel receipt printer
* 58/80mm size printing thermal printer
* Unattended kiosk thermal printer
* Support black mark detection
* Interface: USB/RS232+Cash drawer port
* Syestem:xp/win7/win8/win10/win11/linux
* 3 ways to open the cover:key, wrench and motor controlling
* Code print: EAN8/EAN13/CODE39/CODE128/QR code

Model	MS-MA90
Printing method	Dot line thermal printing
Paper width	80/58mm
Printing speed	150 mm/s(max)
Printing Width	72mm(max)
Resolution	576dots/line
Cutting Conditions	Full/Partial(optional)
Cutting Method	Sliding
Working Voltage	DC12 ± 10% V
Average Current	58mm/3A;80mm/4A (Effective printing points 25%)
Peak Current	12V/10A
Working Temperature	-10~50 ºC(No condensation)
Weight	About 0.45kg(without Paper Roll)
Interface	Serial,USB,Cash box
Mechanical Life	100 km
Max Paper roll diameter	80 mm
Dimension(WDH)	W115mm * D85mm * H132mm
