2D Omni desktop barcode scanner with compact design for POS

China Factory Cheap Near-Distance Depth QR Barcodes Barcode Scanner Module For Vending Machine
MASUNG DCS20 Qr Code Nfc 13.56mhz IC Card Reader Usb Wifi Fixed Mount 2d Barcode Scanner for Kiosk Parking Turnstile Gate
Desktop QR Code Scanner portable self check out kiosk scanner payment terminal kiosk barcode reader


Availability:
Quantity:
  • MS-DCS20

  • MASUNG

High Efficiency  Access Control System QR Code Reader Card Readers for Presonnel identification

High cost performance Megapixel Omnidirectional Barcode Scanner Scan mode/Tone Adjusting Button QR 2D/1D Desktop Reader

Hot selling new Megapixel Scan mode/Tone Adjusting Button Black Omnidirectional Barcode Scanner QR 2D/1D Desktop Reader


202104161606104504

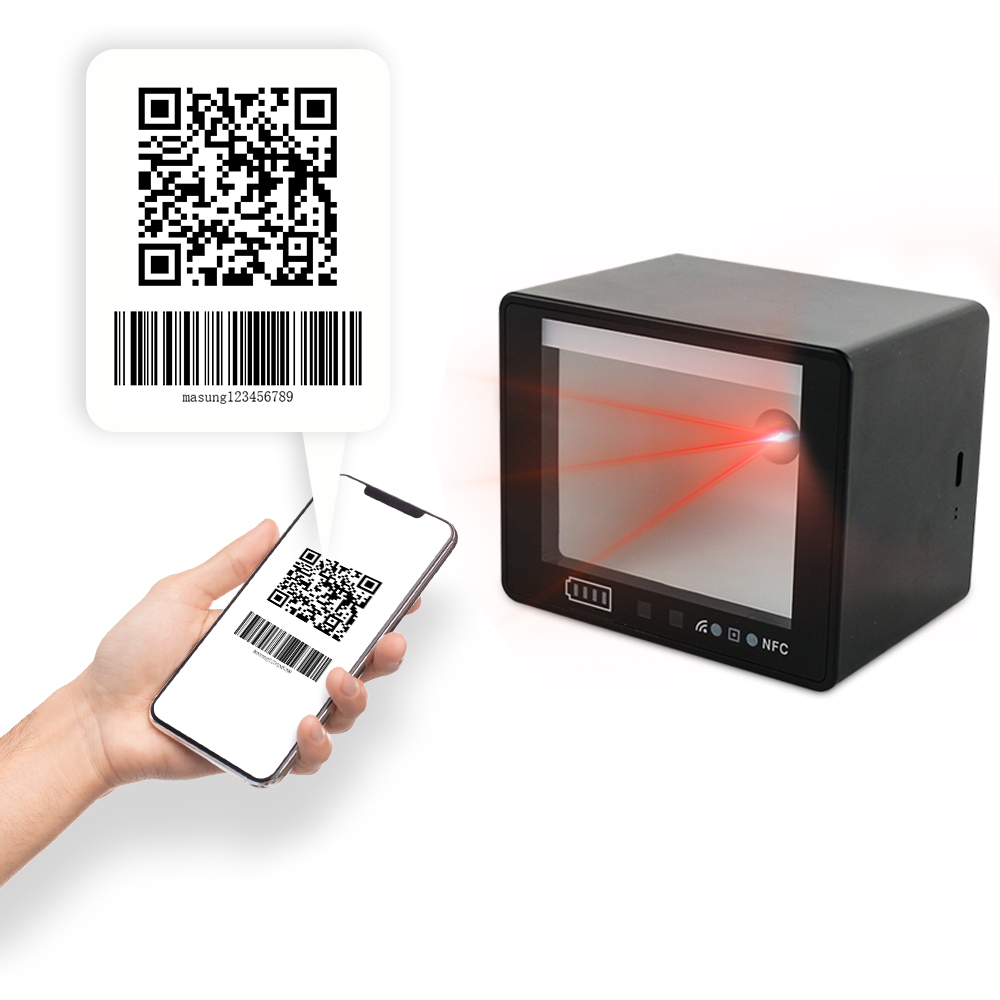

The MS-DCS20 QR code scanner can be embedded on the desktop, used for conference check-in, visitor machines, access control, identity authentication, OCR reading of ID cards and passports, payment, medical self-service, queuing machines, etc. It is particularly suitable for high-density paper, mobile phone codes, close scanning requirements, OCR reading of ID cards, swiping IC cards, and wireless transmission applications. The QR code scanner MS-DCS20 enables Bluetooth and 2.4G dual-mode transmission; The optional card swiping module can support 13.56MHz non-contact IC card readers and Type A/B card recognition; OCR reading can read OCR-A/B numbers, with leading decoding technology and independently developed core technology, providing fast response and supporting rapid development and customization needs.


Model MS-DCS20
fill light white
overall dimension Length x width x height (95 x 77 x 67mm)
Weight of scanner Approximately 223g (including battery but not wire)
Material of scanner ABS (environmentally friendly raw material)

Collection speed

1/120 second
Recognition accuracy Two dimensions ≥ 7.5mil, one dimension ≥ 4mil
Scanning depth of field
Code 128 10mil 18bytes paper code
0~90mm
Code 128 18bytes mobile code
0~120mm
QR 10mil 160bytes paper code
0~55mm
DM 15mil 100bytes paper code
0~90mm
QR 18bytes mobile code
0~255mm
Support coding system

Support various universal QR code standards:

QR Code, Data Matrix,

PDF417, Aztec

Code, Hanxin code, etc

Support various universal one-dimensional code standards:

UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code 93,

Code 11, Interleaved 2 of 5, Industrial 2 of 5, Matrix 25, Standard 25, Codabar,

MSI/MSI PLESSEY, GS1 DataBar, etc

Card reader type 13.56MHz non-contact IC card reader, supporting Type A/B card recognition
